Angry Miao

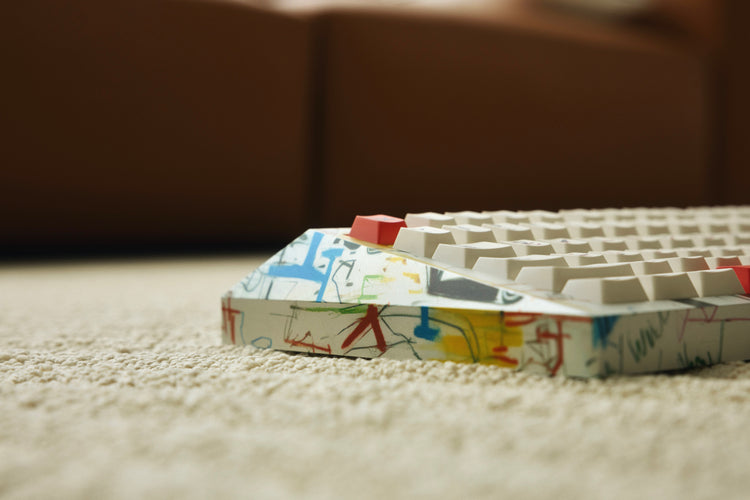

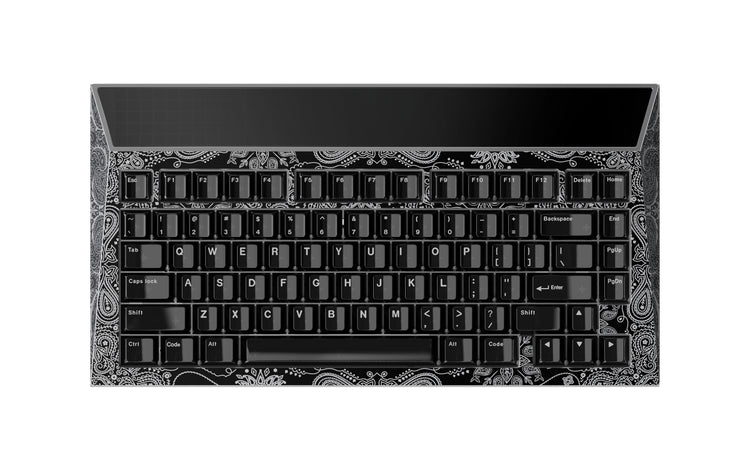

Cyberboard R4 Graffiti

Giá thông thường
19.500.000 VND
Giá thông thường
Giá bán
19.500.000 VND
Colorway
Configuration

Mechkey.store hân hạnh là đại lý chính thức phân phối Cyberboard và các sản phẩm khác từ Angry Miao tại Việt Nam.

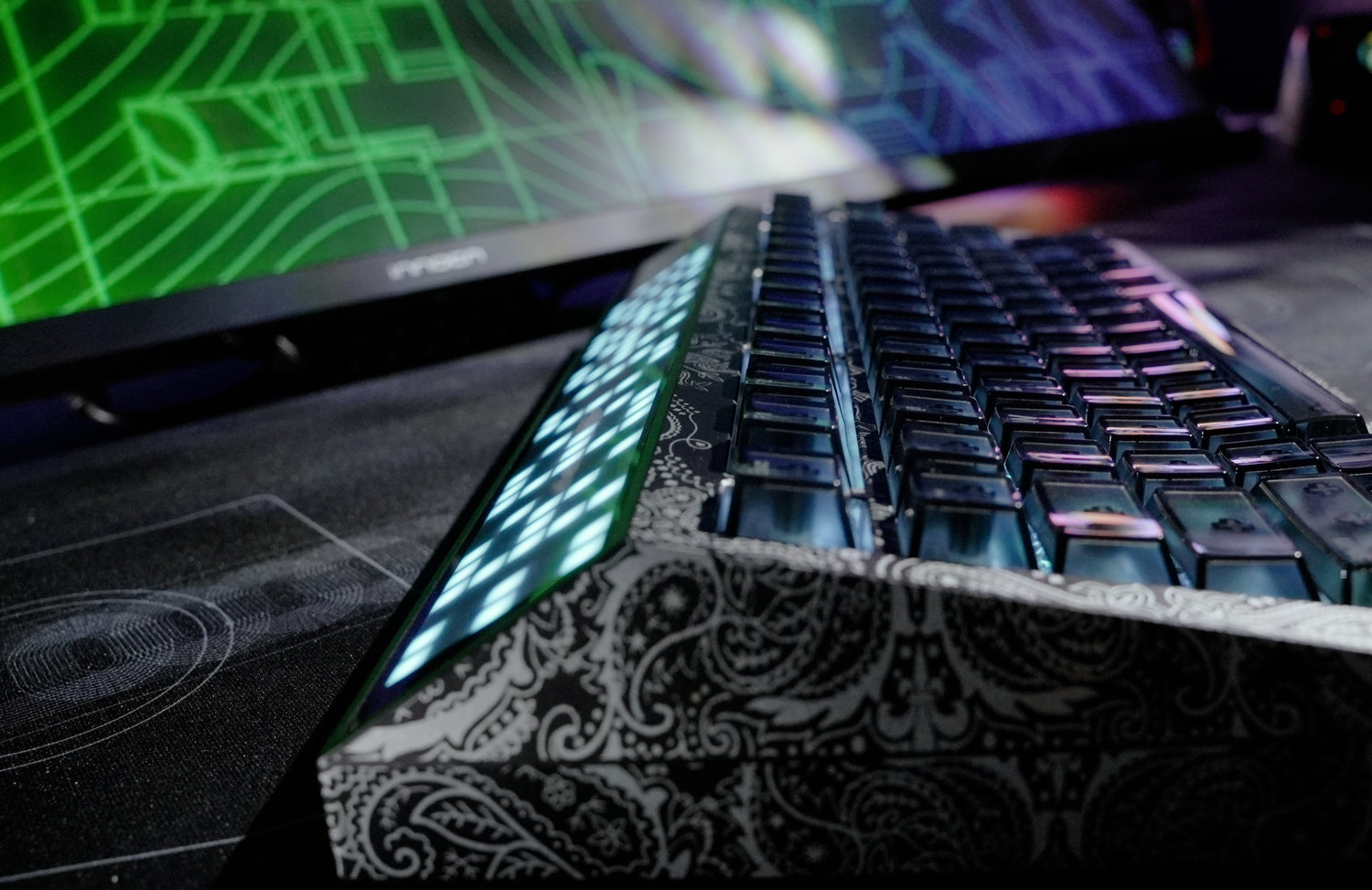

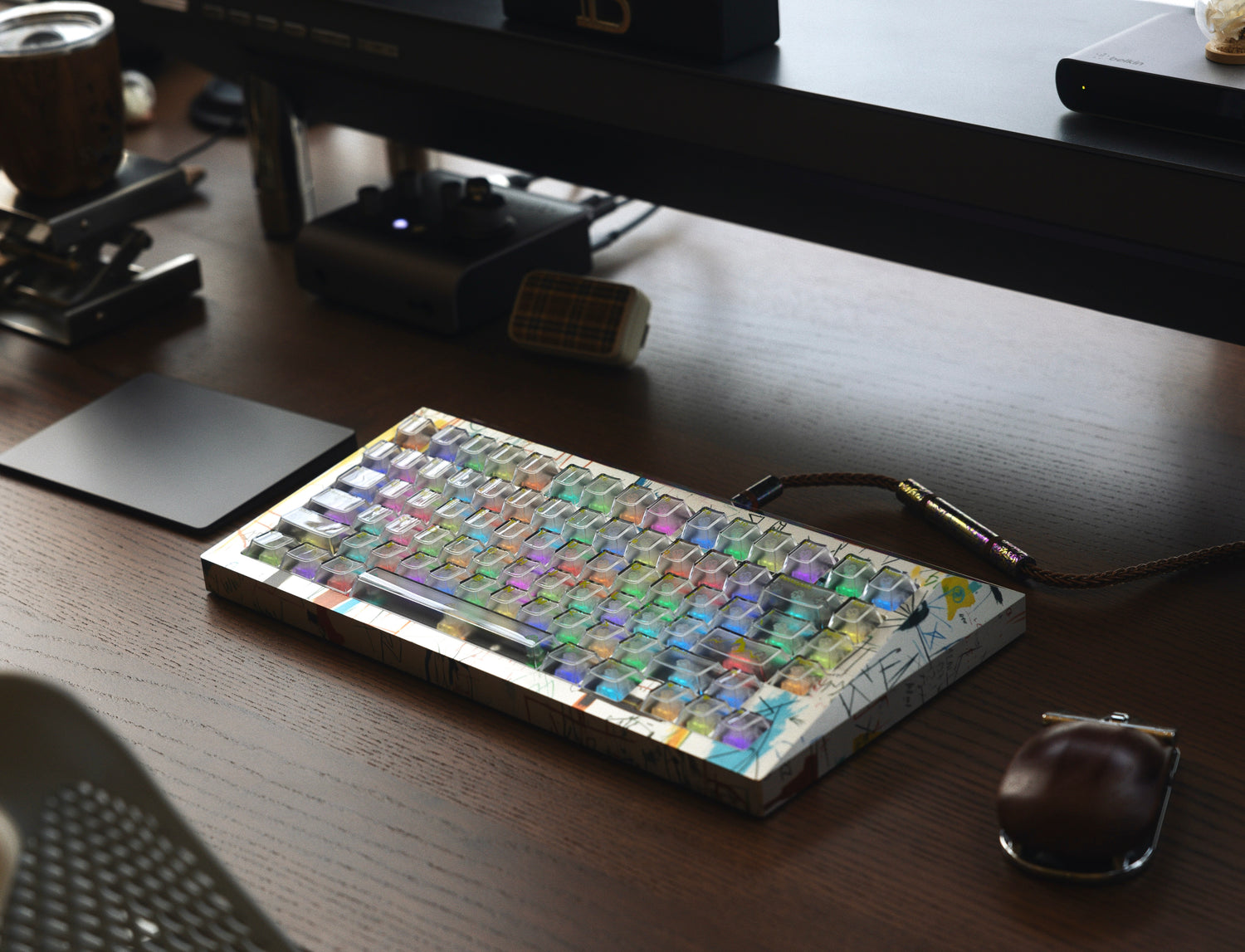

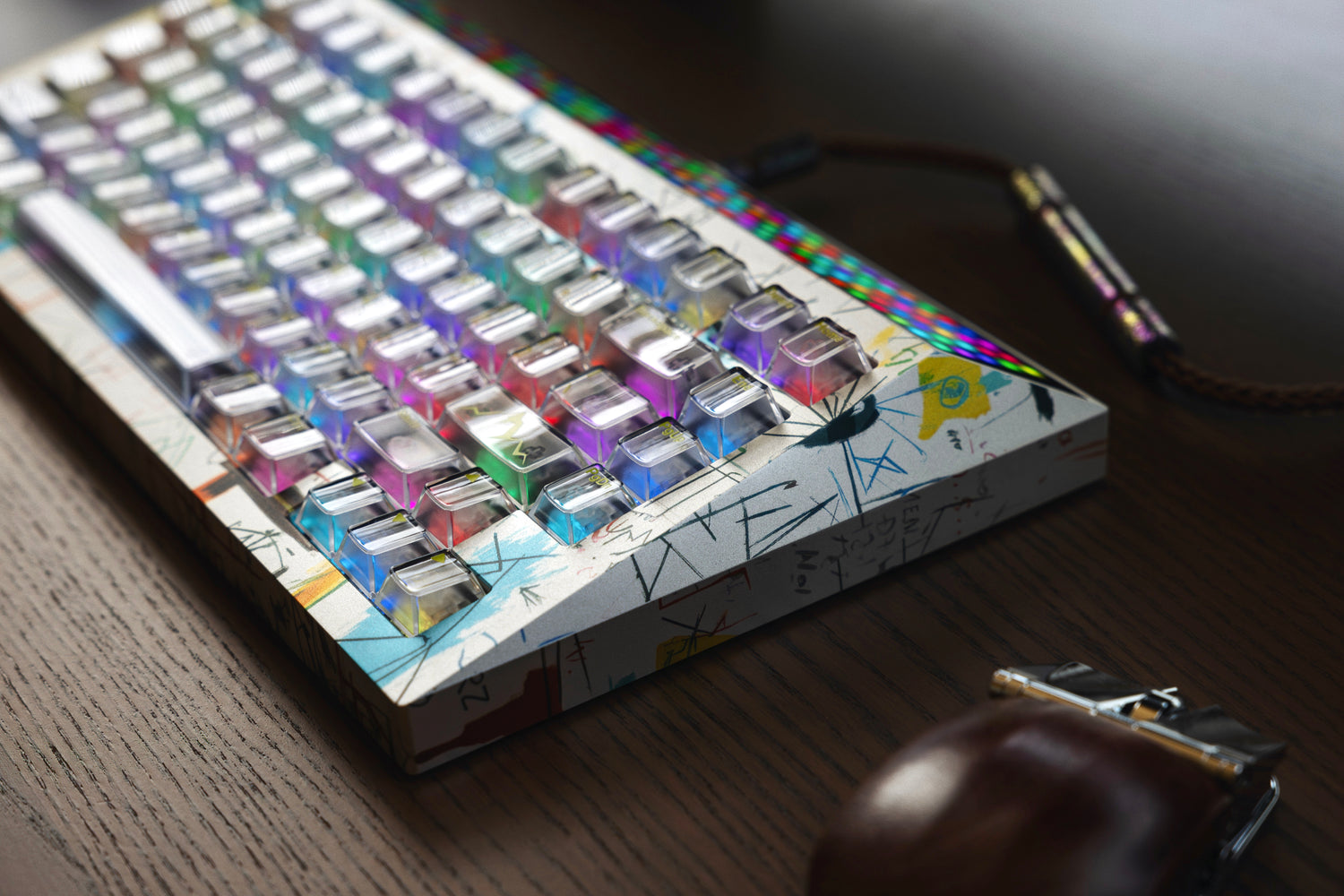

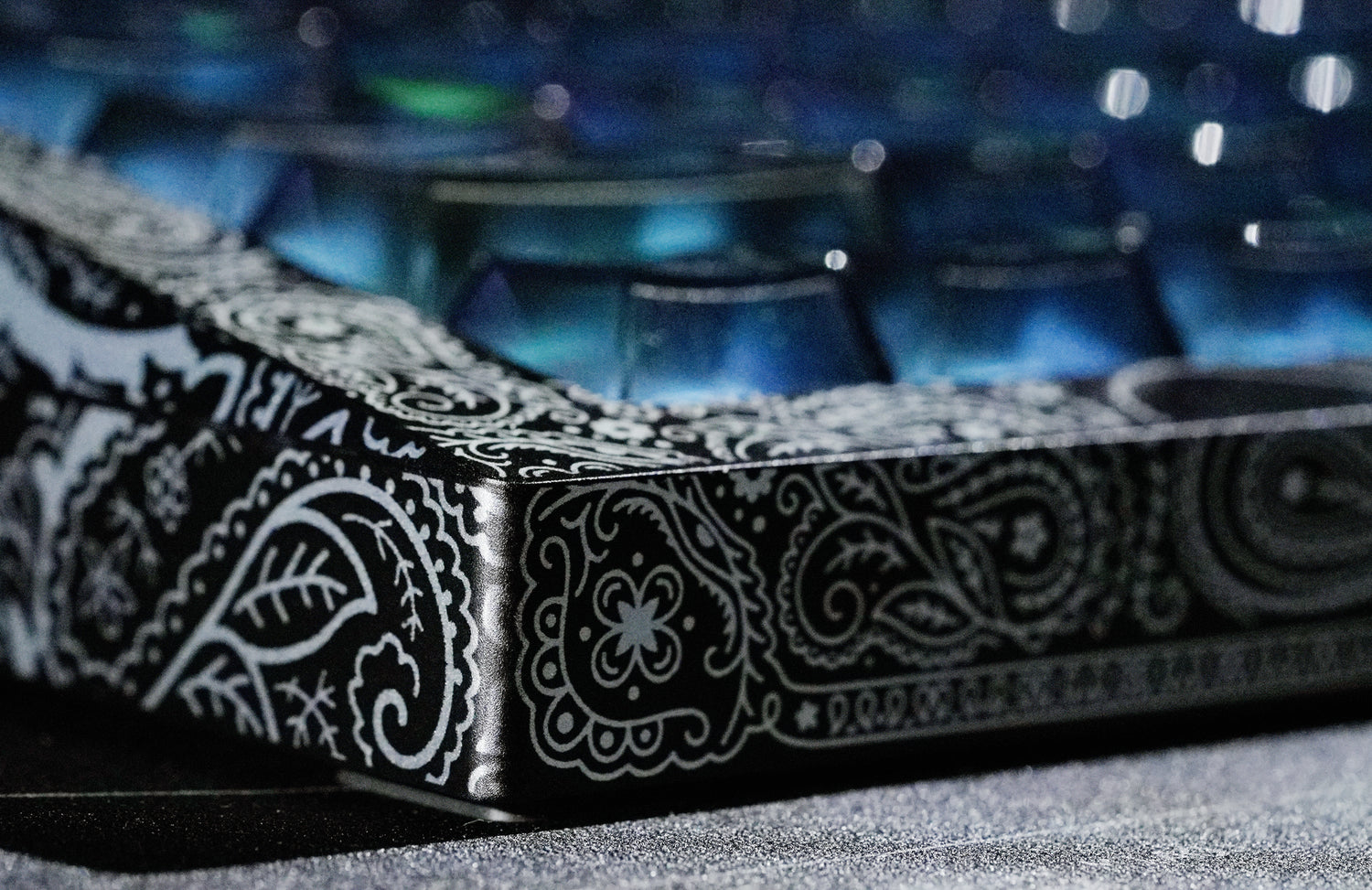

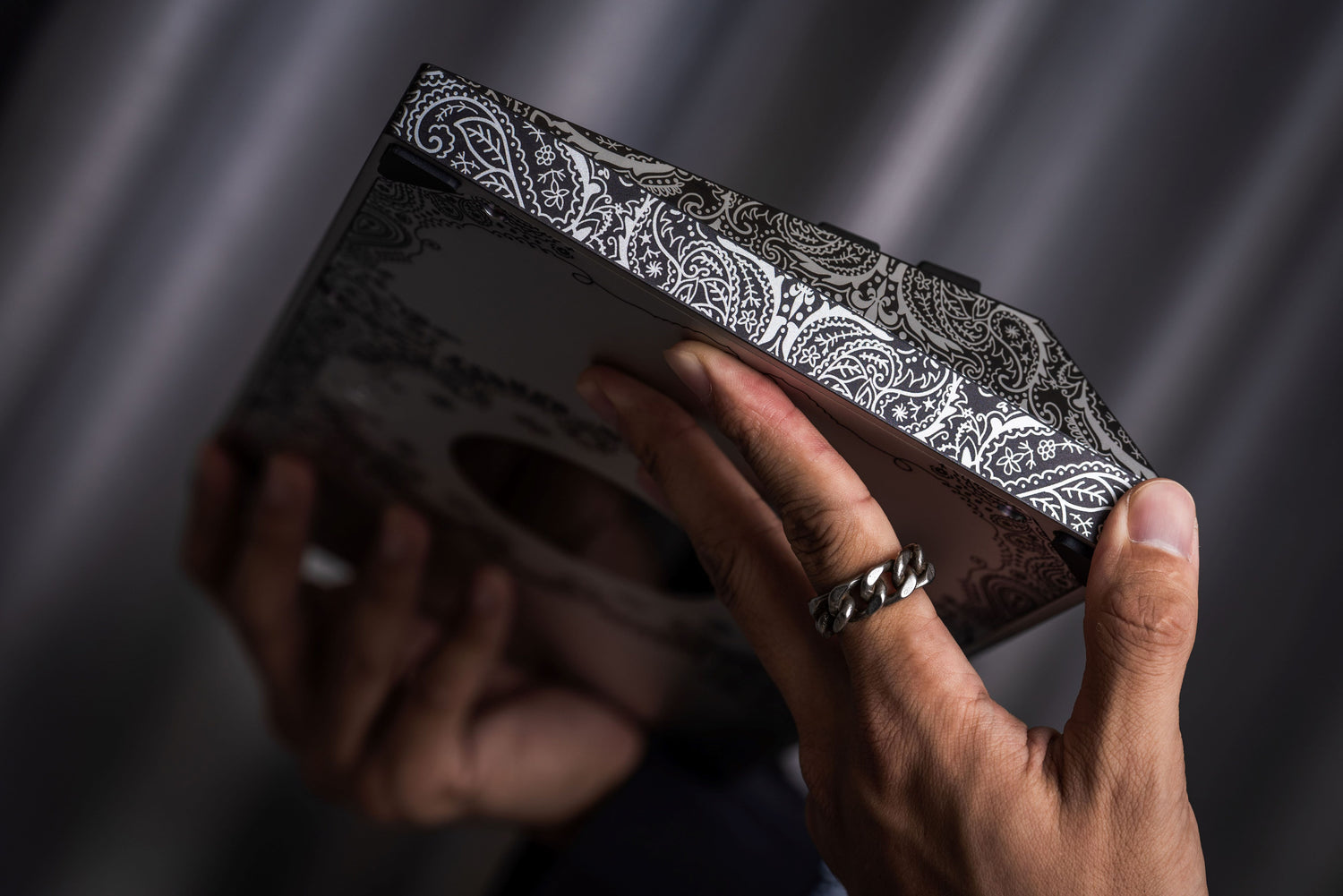

Cyberboard R4 mang đến sự thay đổi lớn về cơ chế mounting - leaf spring và bổ sung thêm nhiều phối màu mới độc đáo hơn. Phiên bản mới nhất là Graffiti mang phong cách được lấy cảm hứng từ chiếc áo khoác Paisley là sự kết hợp giữa Supreme và The North Face hay phối màu Bebop mang hơi hướng của các hoạ sĩ graffiti nổi tiếng như Basquiat hay Felipe Pantone.

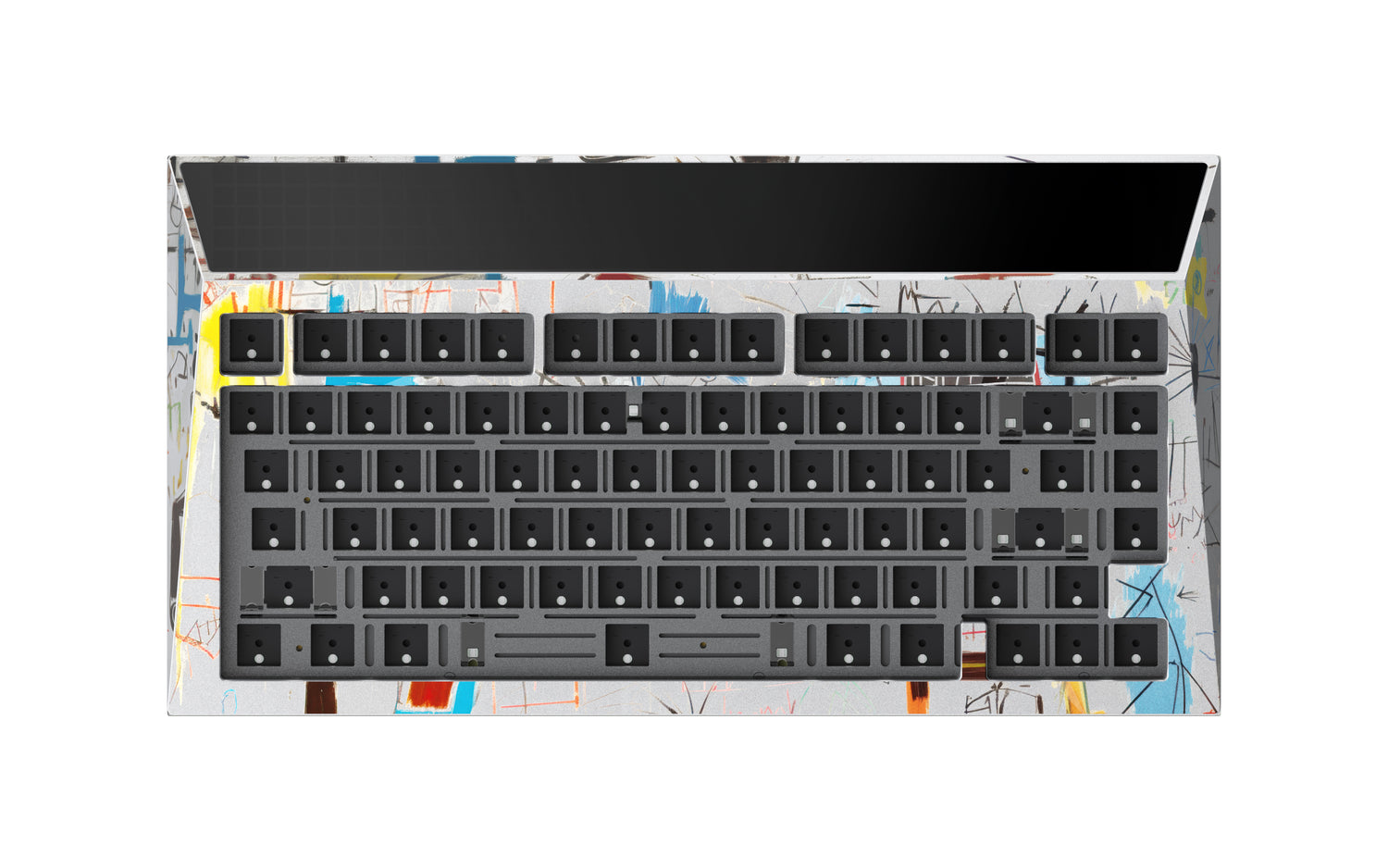

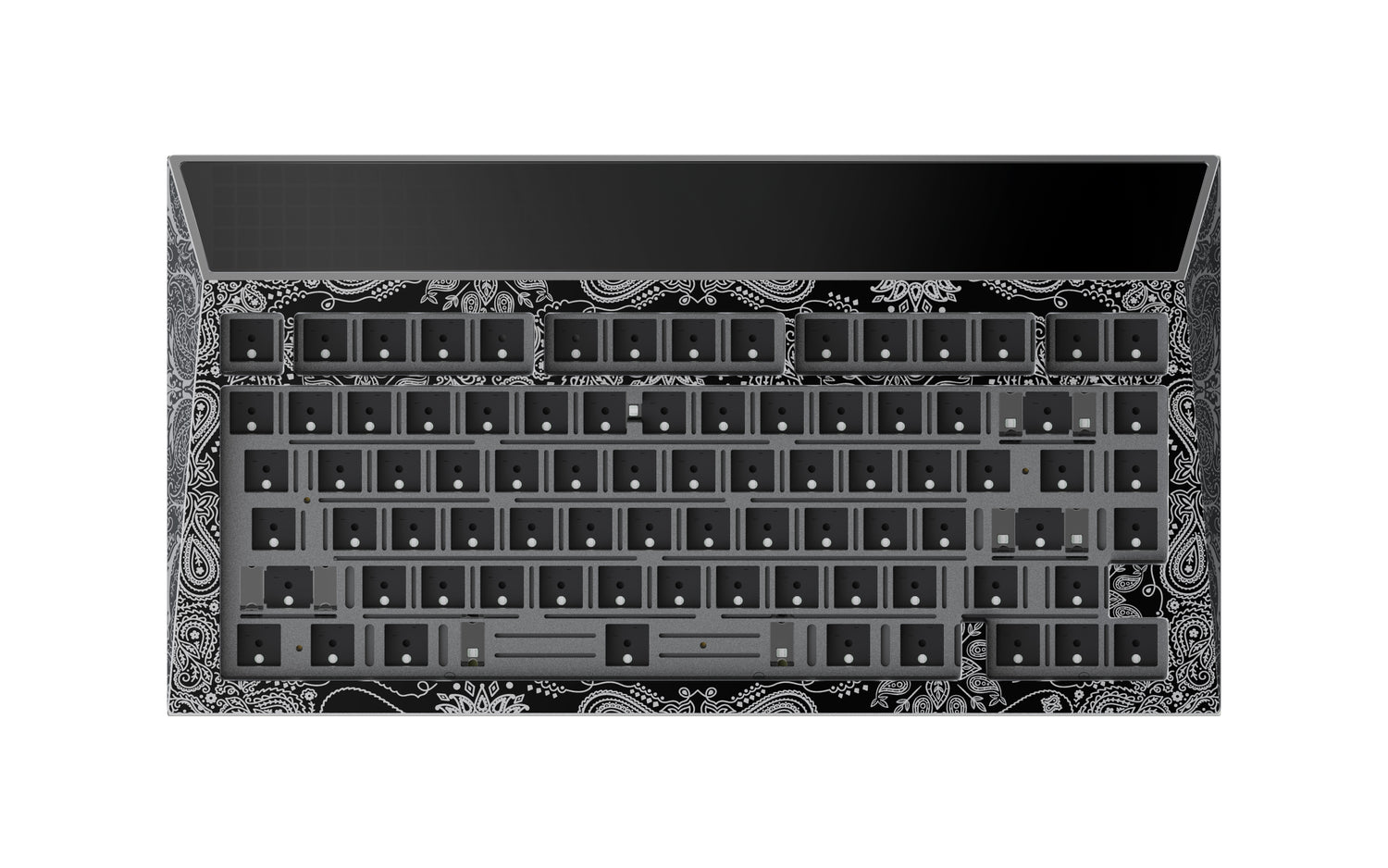

Base kit bao gồm

  • Bộ phím nhôm
  • Mạch hot-swap, cut-outs, RGB, dày 1.2mm
  • Plate POM có cut-outs
  • Bộ phụ kiện Leaf Spring
  • Valy đựng
  • Bộ vít bắt ốc đi kèm

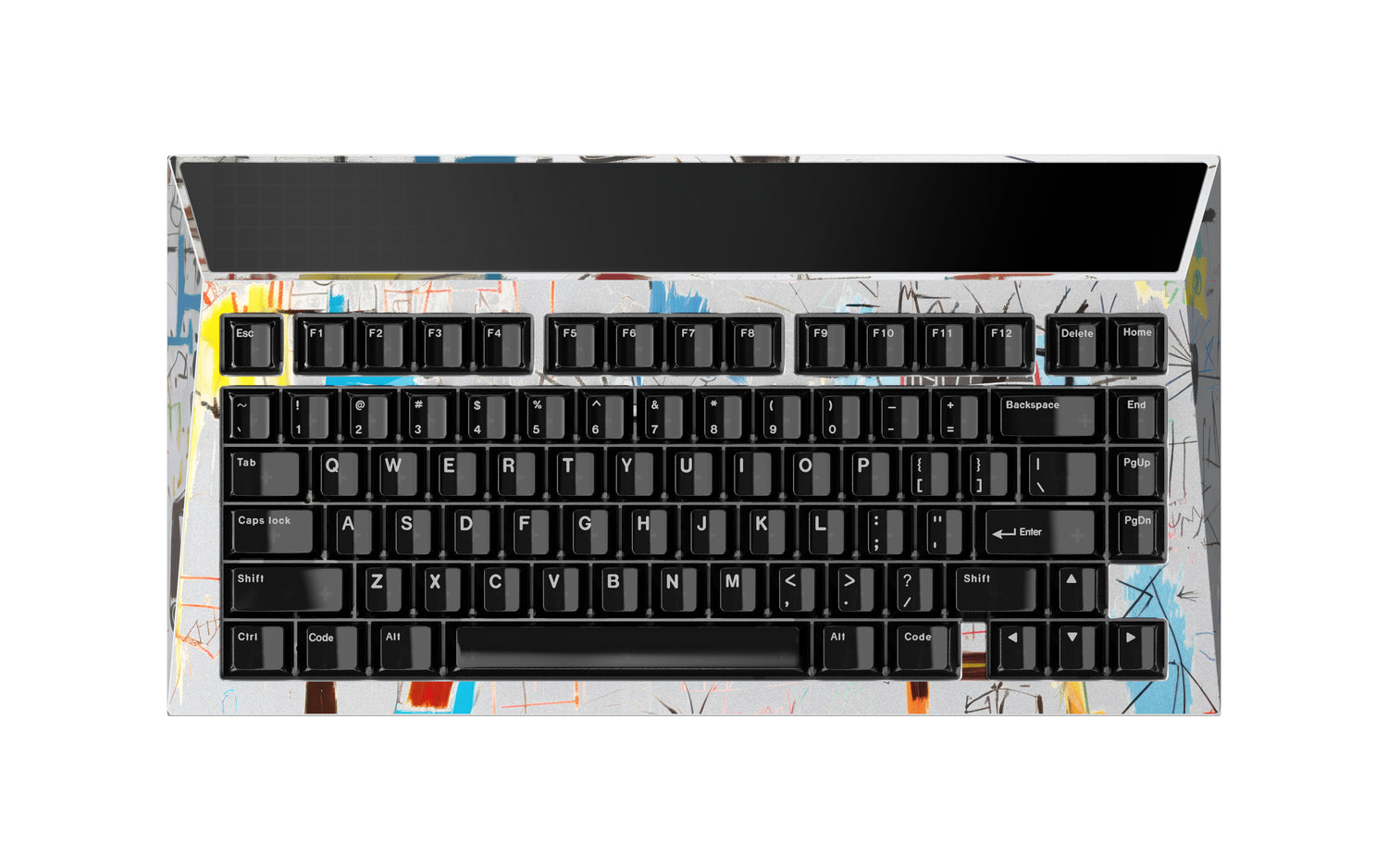

Bundle bao gồm

  • Base kit
  • Keycap
  • Switch Icy Silver Pro
  • Stabilizer Gateron Ink Black

Build & Typing

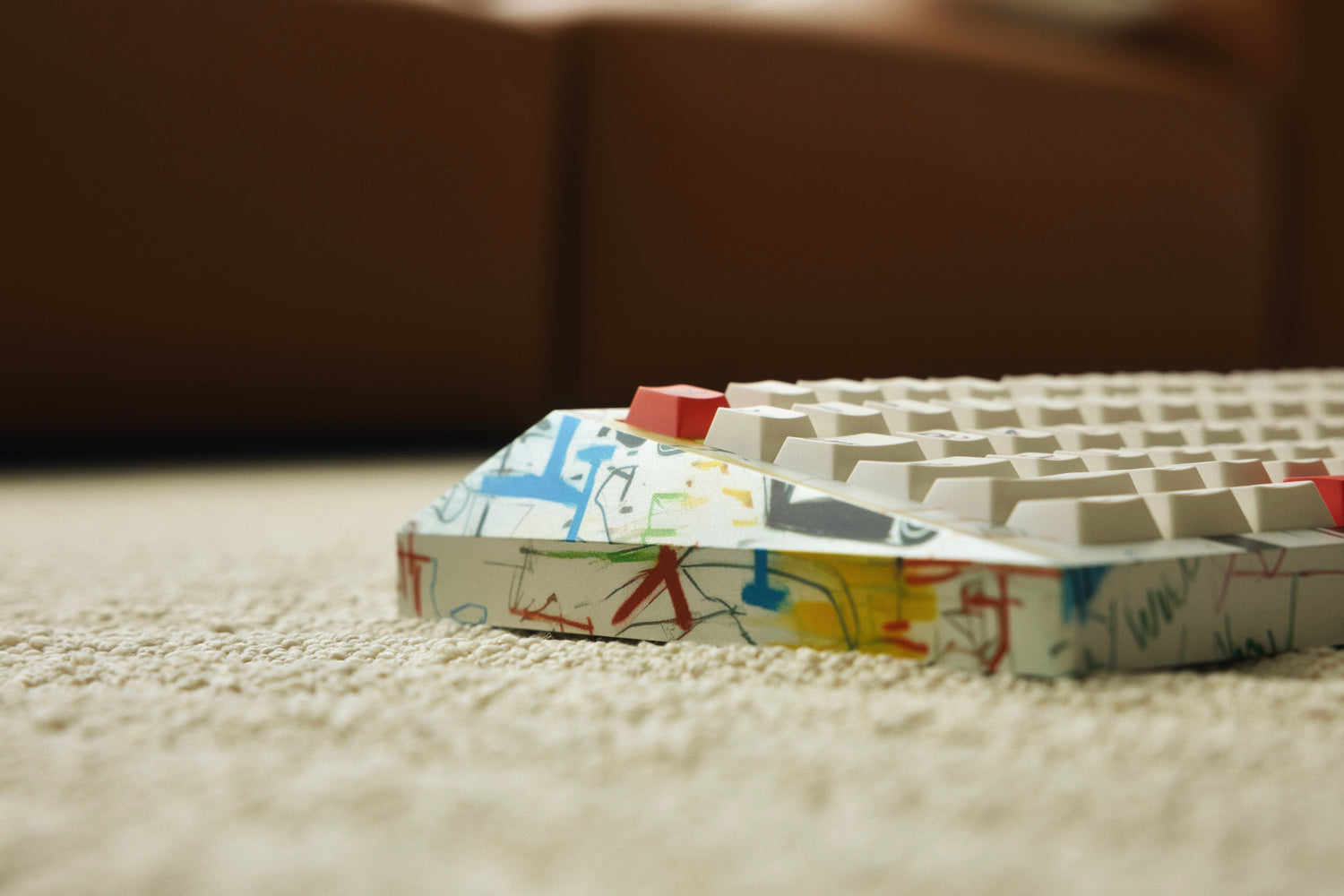

From street fashion to street art

From the gangs of the West Coast to favelo graffiti. And from rebellion to the legend of SAMO IS DEAD, to the abstract of OP ART's retro-futuristic style. Contemporary art and works that are perceived as "phenomenal" often emerge from one's surroundings. In order to pay tribute to these great works and artists, we have incorporated multi-color anodizing for the first time in an Angry Miao product, combining these iconic street trends and artistic symbols with the luster of metal, complementing each other.

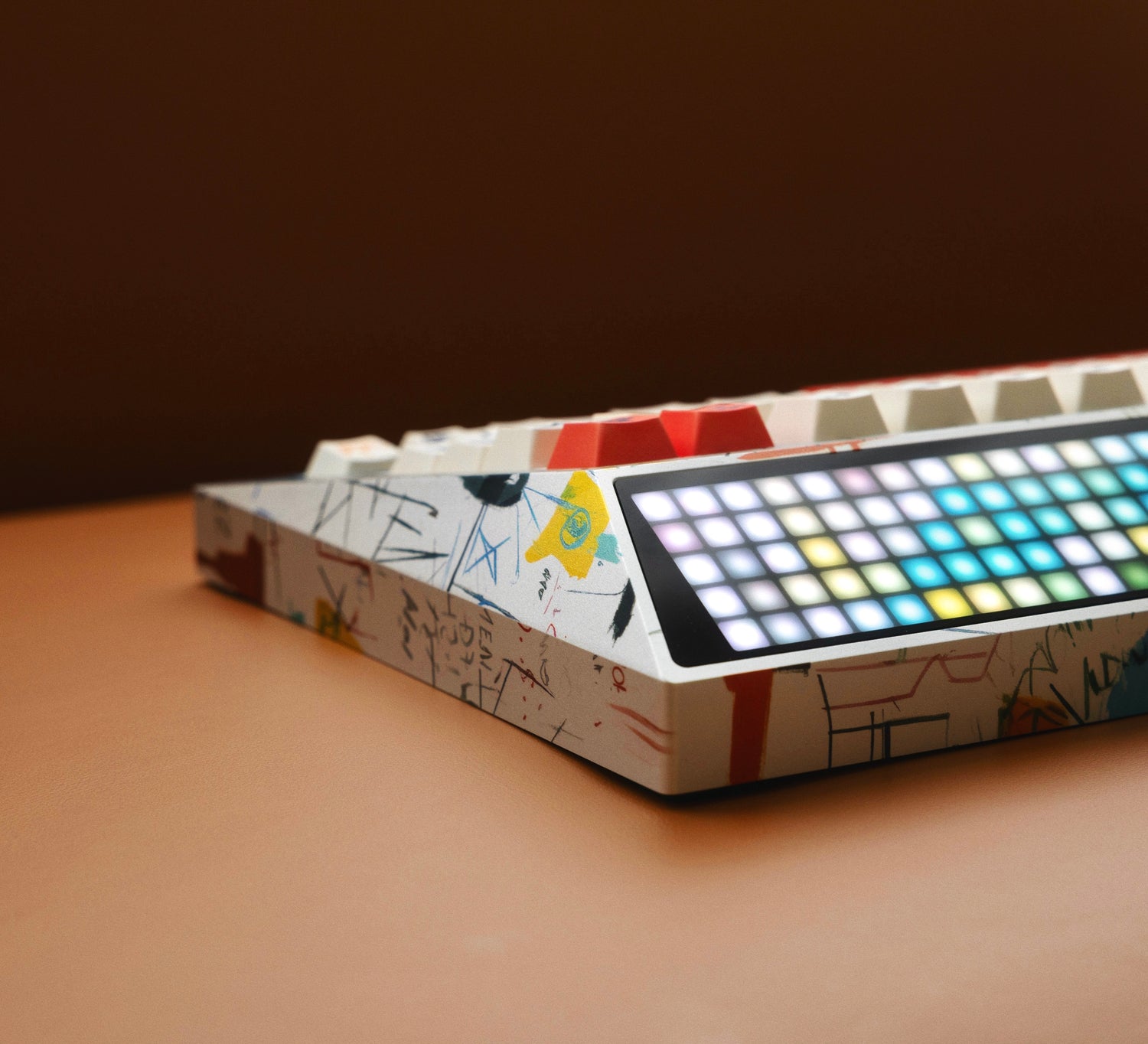

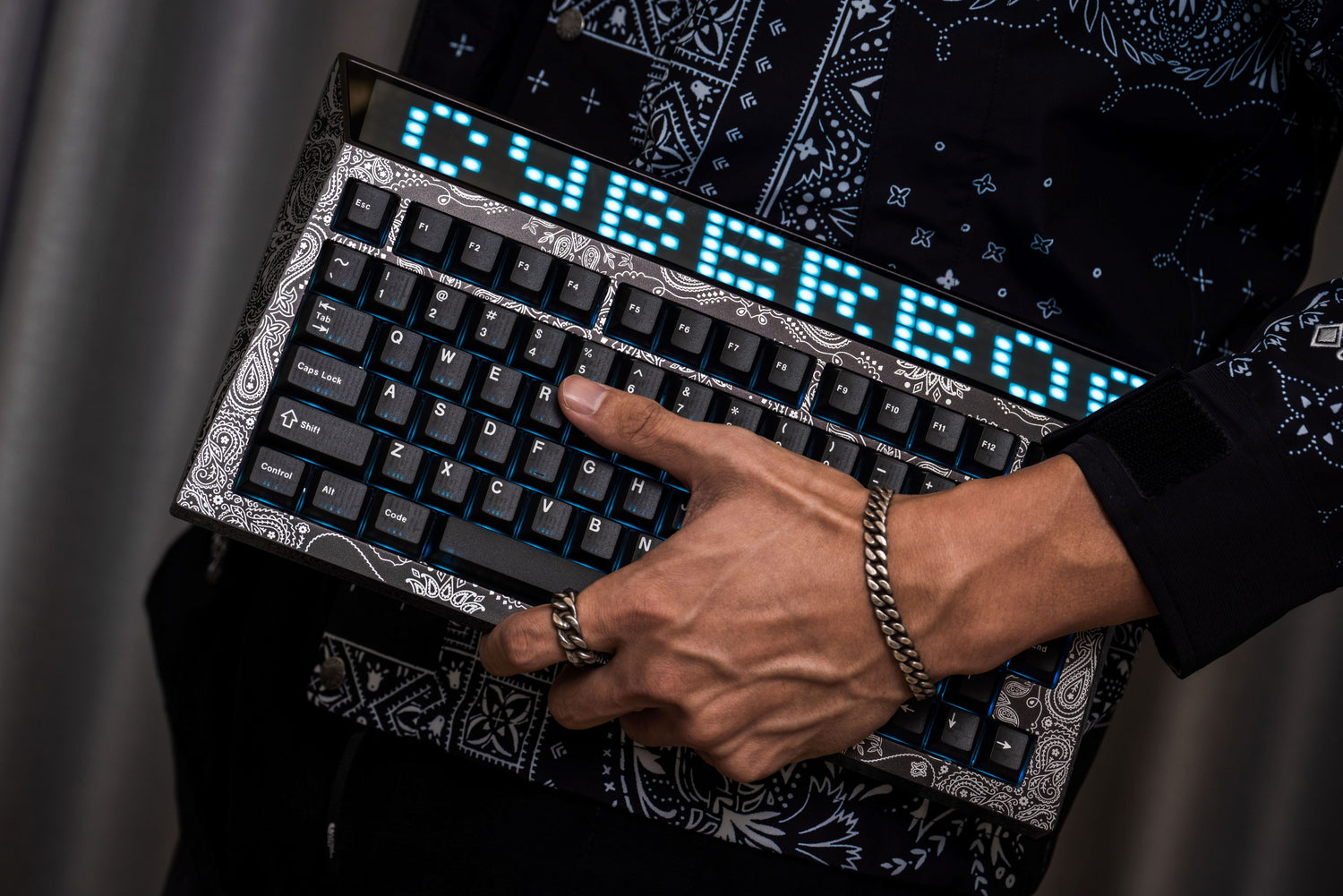

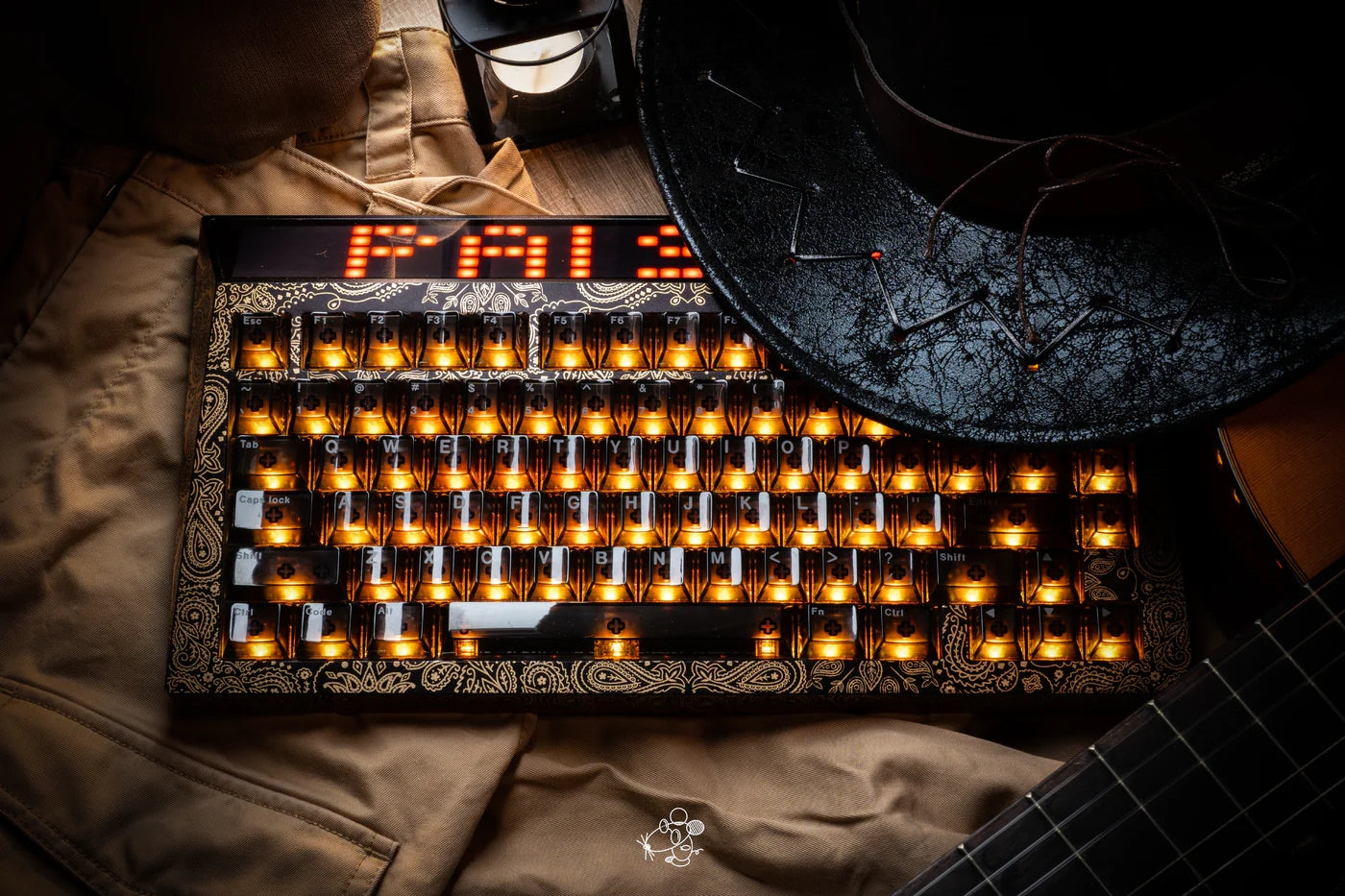

LED panel with custom lighting effects

With thanks to our users, we were able to include custom LED panel lighting effects for each of the e-coat colorways.

Of course, you can also create your own custom lighting effects through our DIY site.

Adjustable Leaf Spring Mount, choose between hard or soft

We have completely reworked the internals for CYBERBOARD R4. Our highly praised Adjustable Leaf Spring Mount, which was first released with AM AFA, is now available with CYBERBOARD for the first time. With our Adjustable Leaf Spring Mount, the typing feel of your keyboard no longer depends on the hardness of the Top Mount or the softness of the Gasket Mount. It's completely up to you.

By mixing stainless steel and phosphorus copper leaf springs, adjusting the three gear levels and using different pads, you can achieve your perfect typing combo.

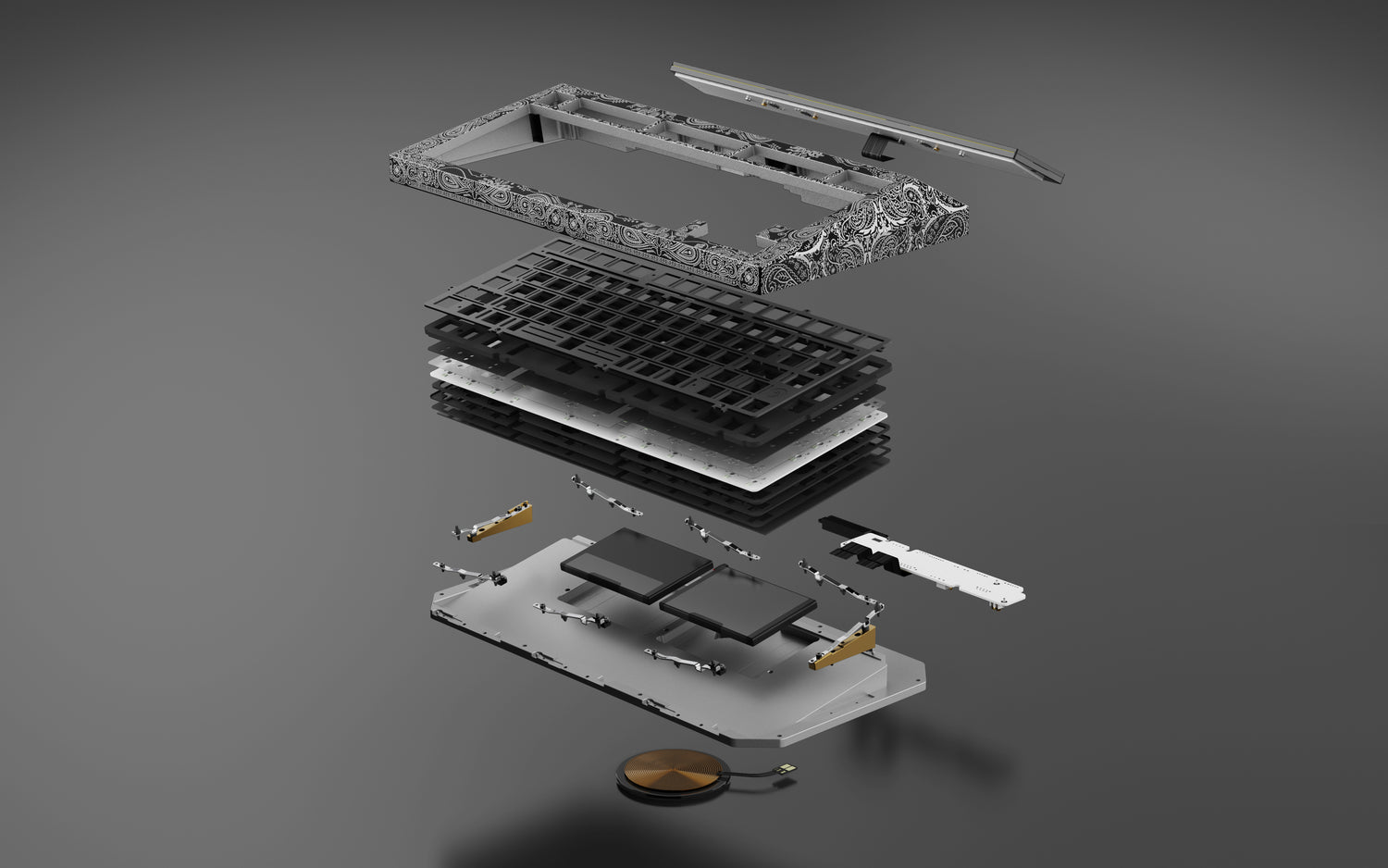

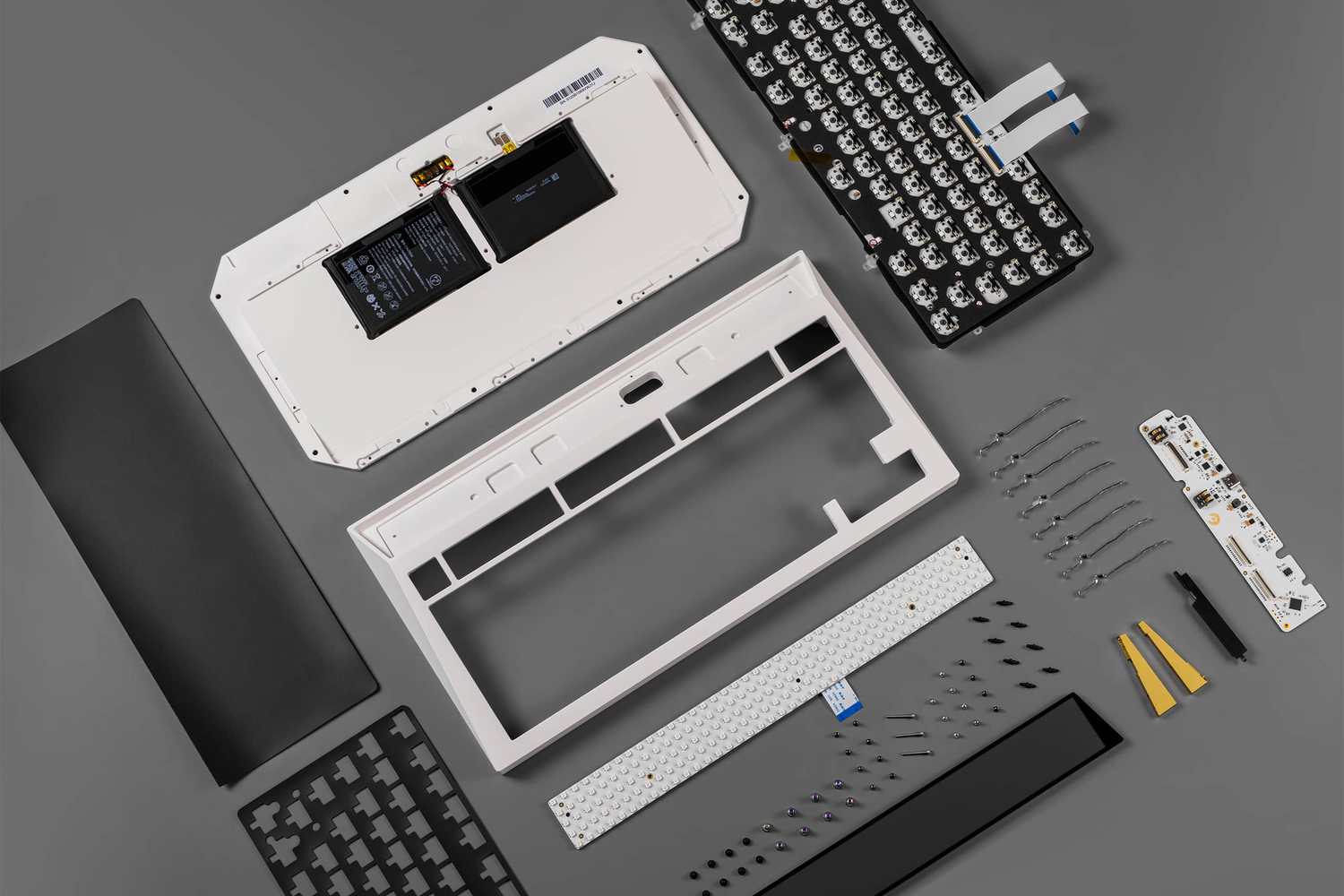

Updated internals, upgraded feel

The best sounding CYBERBOARD yet

With the experience accumlated from developing AM AFA and AM Compact Touch, we believe we have found the perfect setup when it comes to keyboard internals.

Now, it's time to apply our findings to CYBERBOARD.

  • POM plate with cut-outs for more flex
  • PORON foam to minimize the empty space between the plate and PCB
  • 1.2mm 4-layer hotswap PCB with in-switch RGB and pre-attached stabilizer pads
  • Pre-attached custom PCB foam with precise cut-outsIxpe 8 switch pad for a more focused typing sound
  • New PET film for a purer typing sound
  • Two custom adjustment pads to find your perfect typing combo
  • PORON bottom pad to reduce hollow sound and increase cushioning

Icy Silver Pro Switches included in Bundle

RGB x thock

The CYBERBOARD R4 Bundle marks the debut of our Icy Silver Pro Switch, co-developed with Tango Works.

  • All-new Y3 composite stem, pre-lubed
  • Polished translucent PC switch housing
  • 37gf actuation and 45gf bottom-out, light yet smooth
  • Top level feel, sound and RGB

Top-shelf hardware

2.4G hardware supported, available soon

CYBERBOARD R4 has hardware support 2.4G built-in which can be enabled through an OTA update. A separate 2.4G dongle will be available in the future.

Seamless dual-mode switching

Automatically switch between Bluetooth and wired. Just plug in the cable. No need to press any button.

Automatically switch between Windows and macOS key mapping

CYBERBOARD automatically recognizes your operating system and switches to the corresponding key map automatically. Move between PC and Mac effortlessly.

10000mAh battery, 2000+ hours of battery life

Disable the LED panel and in-switch LEDs and you can use your CYBERBOARD for more than 2000 hours in Bluetooth mode.

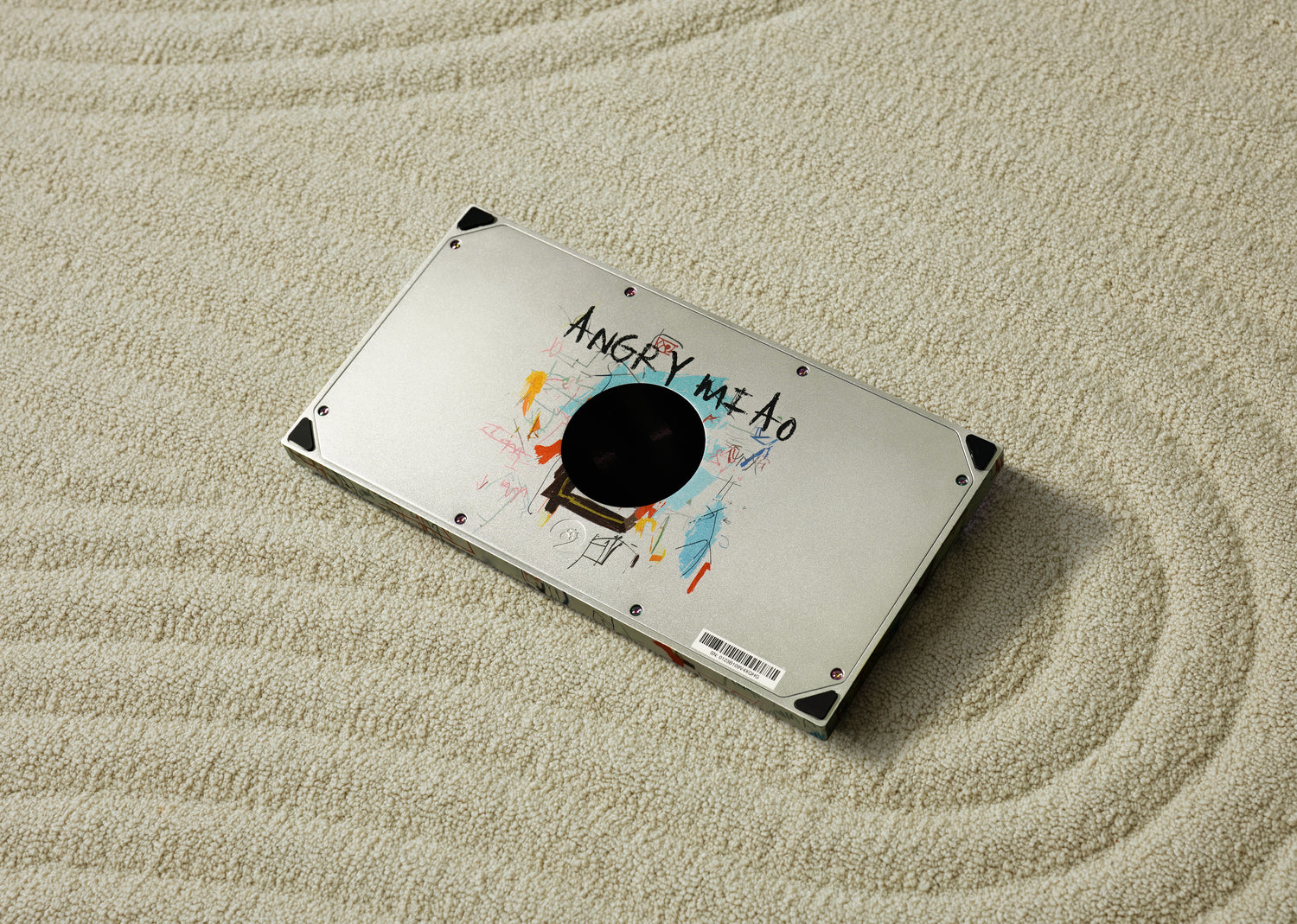

Wireless charging

Thanks to Qi wireless charging support, CYBERBOARD works perfect in combination with CYBERMAT. The perfect combination to get rid of all wires on your desk.

Specifications

Layout

75%

Mount

Angry Miao Three-Stage Adjustable Leaf Spring Mount

Typing Angle

10°

Weight

Base Kit 2.9kg (±0.1)

Bundle 3.2kg (±0.1)

Material

6063 aluminum alloy body

Dimensions


340.5mm (L) x 181mm (W)

Front height 18.1mm, rear height 42.94mm (excluding feet)

Finish

Electrophoresis painting process

PCB

1.2mm thickness, 4-layer with cutouts, supports hotswap and in-switch LEDs

USB Type-C port (supports C to C)

Bluetooth 5.1

Supports key remapping and custom in-switch LED effects
